From $3,581.91
To $4,594.91
SYSTEM COMPONENTS:
- 58647 (QTY.1) | 10+ 4Runner/FJ Extended Travel 2.5 Series IR Coilover Kit
- 56505 (QTY.2) | 03+ 4Runner/FJ 1-3" Rear 2.0 Aluminum Series IR Shocks
- 58551DJ (QTY.1) | 03+ 4Runner/FJ Billet Delta Joint UCA Kit
- 58451DJ (QTY.1) | 03+ 4Runner/FJ Tubular Delta Joint UCA Kit
- 52700 (QTY.1) | 03+ 4Runner/FJ Rear 2" Spring Kit
- 52800 (QTY 1) | Icon Overland Series dual rate 3" lift rear coil springs (Designed for use with load)
- 54000T (QTY.1) | 03+ 4Runner/FJ Tubular Lower Trailing Arm Kit
- 54000 (QTY.1) | 03+ 4Runner/FJ Billet Lower Trailing Arm Kit
Optional:
- Spanner wrench for coilover adjustment is optional. Choose from menu.

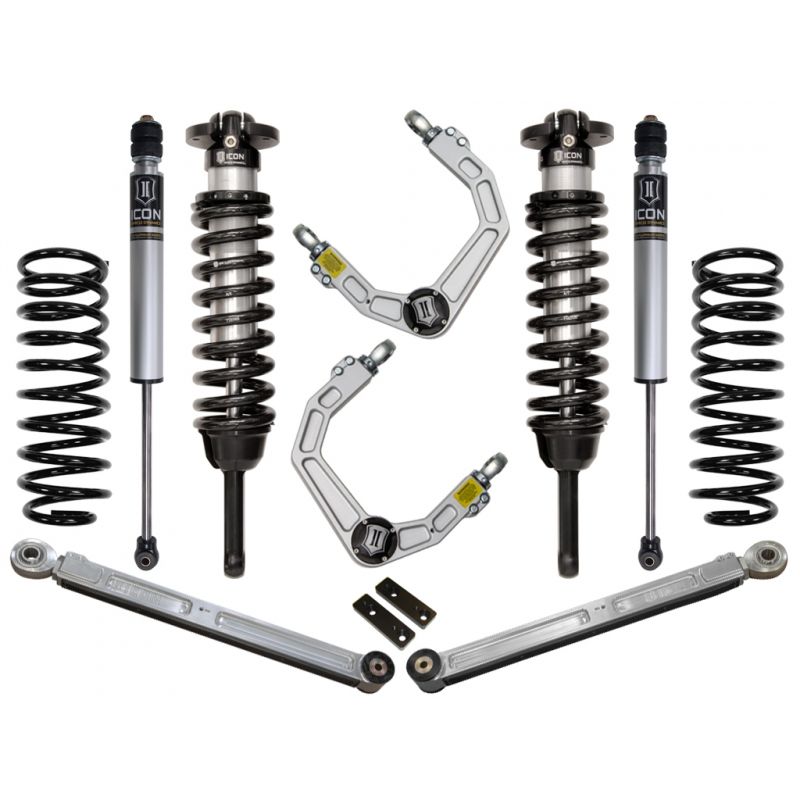

K53063 - Icon Stage 3 Suspension System for 2010-Current 4Runner and FJ Cruiser
OVERVIEW:
The ICON Stage 3 Suspension System for the 2010-Current Toyota 4Runner and FJ Cruiser includes the components found in the Stage 2 system along with an ICON Billet Aluminum Rear Lower Link kit. Extended travel ICON 2.5 Series coilover shocks and a billet aluminum Delta Joint upper control arm kit provide a significant upgrade to the 4Runner’s front suspension. The rear of the vehicle is improved with our 2" lift coil springs, ICON 2.0 Aluminum Series shocks, and the additional rear lower links. ICON's CNC machined 6061 billet aluminum lower links are much stronger than the OE units, can be easily adjusted on the truck for optimum pinion angle, and are protected by a machined nylon skid strip to help slide over rocks without damage to the link’s structure. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
ICON Stage 3 Suspension System features upper control arms with ICON's patent pending Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
TECH INFO:
- We recommend the use of our #56100 shock shin guards to reduce the chance of shock shaft damage. These shocks are located in a vulnerable position that allows debris to easily come in direct contact with the shock shaft.
- KDSS Equipped vehicles require 54200 Rear Adjustable Track Bar
- OEM Wheels & Tires: Yes
- Aftermarket Wheels: 8-8.5" Wide, 4.75" Backspace
- Aftermarket Tires: 33" x 11.25
- (Larger tires may fit but fender trimming and modifications will be required)
Manufacturer | Icon Vehicle Dynamics |
---|
